NCV8603 - LDO Regulator

ON Semiconductor

📥 Download Datasheet

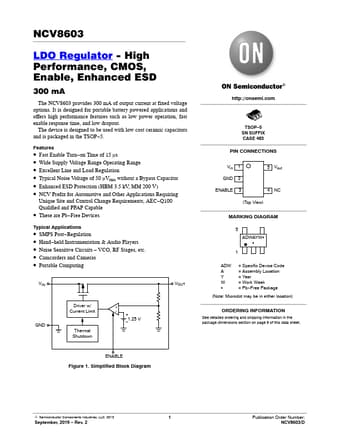

NCV8603 Datasheet Preview — Preview of NCV8603 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NCV8603
Manufacturer	ON Semiconductor ↗
File Size	162.50 KB
Description	LDO Regulator
Datasheet	NCV8603-ONSemiconductor.pdf

NCV8603 Product details

Description

Pin No. power standby when pulled to logic low (< 0.4 V).

Features

such as low power operation, fast enable response time, and low dropout. The device is designed to be used with low cost ceramic capacitors and is packaged in the TSOP.
5. Features.
Fast Enable Turn.
on Time of 15 ms.
Wide Supply Voltage Range Operating Range.
Excellent Line and Load Regulation.
Typical Noise Voltage of 50 mVrms without a Bypass Capacitor.
Enhanced ESD Protection (HBM 3.5 kV, MM 200 V).
NCV Prefix for Automotive.
