NCV8606, NCV8605 Datasheet - ON Semiconductor

NCV8606 CMOS LDO Regulator

Pin No. Pin Name Description 1 Vin Positive Power Supply Input * 2 GND Power Supply Ground 3 NC/EN NCV8605: This Pin is Not Connected NCV8606: This Pin is Enable Input, Active HIGH 4 Vout Regulated Output Voltage 5 SENSE/ADJ Output Voltage Sense Input Fixed Version: Connect Dir.

NCV8606 Features

* such as high PSRR, low noise operation, short circuit and thermal protection. The devices are designed to be used with low cost ceramic capacitors and are packaged in the DFN6 3x3.3. NCV8605 is designed without enable pin, NCV8606 is designed with enable pin. Features

* Output Voltage Option

NCV8605-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: NCV8606, NCV8605. Please refer to the document for exact specifications by model.

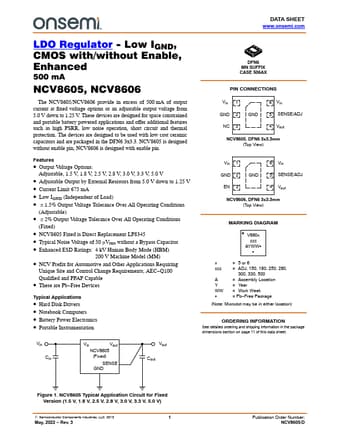

NCV8606 Datasheet Preview Page 2 NCV8606 Datasheet Preview Page 3

Datasheet Details

Part number:

NCV8606, NCV8605

Manufacturer:

ON Semiconductor ↗

File Size:

214.11 KB

Description:

Cmos ldo regulator.

Note:

This datasheet PDF includes multiple part numbers: NCV8606, NCV8605.
Please refer to the document for exact specifications by model.
