NCV8605 - CMOS LDO Regulator

ON Semiconductor

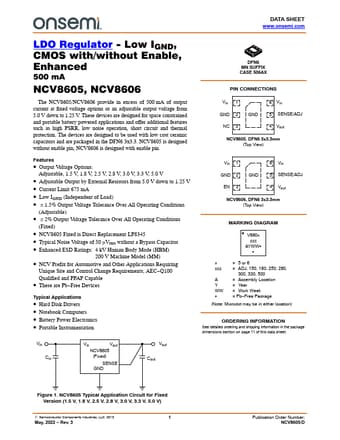

NCV8605 Datasheet Preview — Preview of NCV8605 PDF

Datasheet Details

Part number	NCV8605
Manufacturer	ON Semiconductor ↗
File Size	214.11 KB
Description	CMOS LDO Regulator
Datasheet	NCV8605-ONSemiconductor.pdf

NCV8605 Product details

Description

Pin No. 2 GND Power Supply Ground 3 NC/EN NCV8605: This Pin is Not Connected NCV8606: This Pin is Enable Input, Active HIGH 4 Vout Regulated Output Voltage 5 SENSE/ADJ Output Voltage Sense Input Fixed Version: Connect Directly to Output Capacitor Adjustable Version: Connect to Middle Point of External Resistor Divider 6 Vin Positive Power Supply Input EPAD GND Exposed Pad is Connected to Ground Pins

Features

such as high PSRR, low noise operation, short circuit and thermal protection. The devices are designed to be used with low cost ceramic capacitors and are packaged in the DFN6 3x3.3. NCV8605 is designed without enable pin, NCV8606 is designed with enable pin. Features.
Output Voltage Options: Adjustable, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V, 5.0 V.
Adjustable Output by External Resistors from 5.0 V down to 1.25 V.
Current Limit 675 mA.
Low IGND (Independen.
