NFAM0512L5BT

IPM

ON Semiconductor

NFAM0512L5BT Features

* Three

* phase 1200 V, 5 A IGBT Module with Independent Drivers

* Active Logic Interface

* Built

* in Under

* voltage Protection (UVP)

* Integrated Bootstrap Diodes and Resistors

* Separate Low

* side IGBT Emitter Connections for Indiv

NFAM0512L5BT General Description

The NFAM0512L5BT is a fully

*integrated inverter power module consisting of an independent High side gate driver, LVIC, six IGBT’s and a temperature sensor (VTS and NTC Thermistor), suitable for driving permanent magnet synchronous (PMSM) motors, brushless DC (BLDC) motors and AC asynchronous.

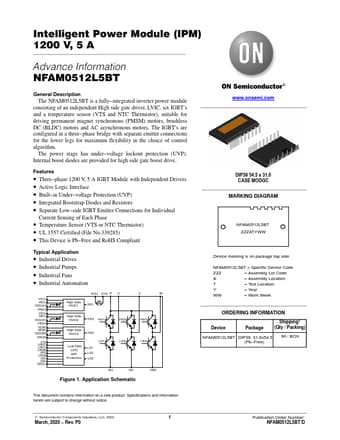

NFAM0512L5BT Datasheet (205.73 KB)

NFAM0512L5BT Datasheet Preview — Preview of NFAM0512L5BT PDF

Datasheet Details

Part number:

NFAM0512L5BT

Manufacturer:

ON Semiconductor ↗

File Size:

205.73 KB

Description:

Ipm.
