NFAM2065L4B - IPM

Datasheet Summary

Description

The NFAM2065L4B is a fully

consisting of an independent High side gate driver, LVIC, six IGBT’s and a temperature sensor (VTS), suitable for driving permanent magnet synchronous (PMSM) motors, brushless DC (BLDC) motors and AC asynchronous motors.

Features

  • Three.
  • phase 650 V, 20 A IGBT Module with Independent Drivers.
  • Active Logic Interface.
  • Built.
  • in Under.
  • voltage Protection (UVP).
  • Integrated Bootstrap Diodes and Resistors.
  • Separate Low.
  • side IGBT Emitter Connections for Individual Current Sensing of Each Phase.
  • Temperature Sensor (VTS).
  • UL1557 Certified (File No. E339285).
  • This Device is Pb.
  • Free and RoHS Compliant Typical.

📥 Download Datasheet

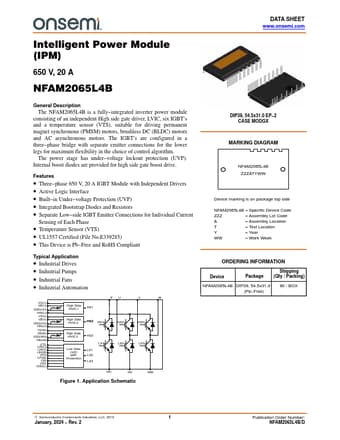

Datasheet preview – NFAM2065L4B

Datasheet Details

Part number NFAM2065L4B
Manufacturer onsemi
File Size 386.94 KB
Description IPM
Datasheet download datasheet NFAM2065L4B Datasheet
Additional preview pages of the NFAM2065L4B datasheet.

📁 Similar Datasheet

  • NFAM2512L7BL - Intelligent Power Module (ON Semiconductor)
  • NFAM2512SCBUT - IPM (ON Semiconductor)
  • NFAM0512L5BT - IPM (ON Semiconductor)
  • NFAM3512L7B - Intelligent Power Module (ON Semiconductor)
  • NFA100-220S05 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S09 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S12 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S13.8 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S15 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S18 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
Other Datasheets by onsemi

Full PDF Text Transcription

Click to expand full text
DATA SHEET www.onsemi.com Intelligent Power Module (IPM) 650 V, 20 A NFAM2065L4B General Description The NFAM2065L4B is a fully−integrated inverter power module consisting of an independent High side gate driver, LVIC, six IGBT’s and a temperature sensor (VTS), suitable for driving permanent magnet synchronous (PMSM) motors, brushless DC (BLDC) motors and AC asynchronous motors. The IGBT’s are configured in a three−phase bridge with separate emitter connections for the lower legs for maximum flexibility in the choice of control algorithm. The power stage has under−voltage lockout protection (UVP). Internal boost diodes are provided for high side gate boost drive.
