NFAM2512SCBUT - IPM

Datasheet Summary

Description

The NFAM2512SCBUT is a fully integrated inverter power module consisting of an independent High side gate driver, LVIC, six SiC MOSFET’s and a temperature sensor (VTS or Thermistor), suitable for driving permanent magnet synchronous (PMSM) motors, brushless DC (BLDC) motors and AC asynchrono

Features

  • 1200 V 70 A 3.
  • Phase MOSFET Inverter, Including Control ICs for Gate Drive and Protections.
  • Active Logic Interface.
  • Built.
  • in Under.
  • voltage Protection (UVP).
  • Built.
  • in Bootstrap Diodes/Resistors.
  • Separate Low.
  • side MOSFET Source Connections for Individual Current Sensing of Each Phase.
  • Temperature Sensor (VTS Output by LVIC or Thermistor).
  • UL Certification: E209204.
  • This is a Pb.
  • F.

📥 Download Datasheet

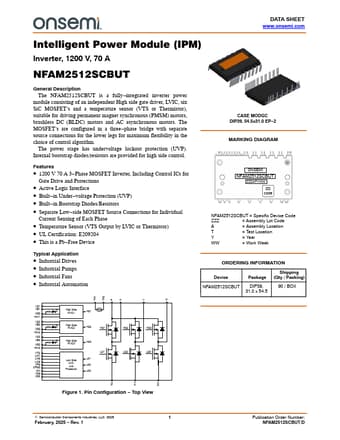

Datasheet preview – NFAM2512SCBUT

📁 Similar Datasheet

  • NFAM2065L4B - IPM (onsemi)
  • NFAM5312SCBUT - 1200V 40A IPM (onsemi)
  • NFA100-220S05 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S09 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S12 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S13.8 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S15 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S18 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S24 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
  • NFA100-220S26 - 50-150W Single Output / built-in surge suppression and filtering circuit AC / DC power modules (NFA)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
DATA SHEET www.onsemi.com Intelligent Power Module (IPM) Inverter, 1200 V, 70 A NFAM2512SCBUT General Description The NFAM2512SCBUT is a fully−integrated inverter power module consisting of an independent High side gate driver, LVIC, six SiC MOSFET’s and a temperature sensor (VTS or Thermistor), suitable for driving permanent magnet synchronous (PMSM) motors, brushless DC (BLDC) motors and AC asynchronous motors. The MOSFET’s are configured in a three−phase bridge with separate source connections for the lower legs for maximum flexibility in the choice of control algorithm. The power stage has undervoltage lockout protection (UVP). Internal bootstrap diodes/resistors are provided for high side control.
