NFAM5312SCBUT - 1200V 40A IPM

Product Overview

onsemi

Datasheet Details

Part number	NFAM5312SCBUT
Manufacturer	onsemi
File Size	761.36 KB
Description	1200V 40A IPM
Datasheet	NFAM5312SCBUT Datasheet

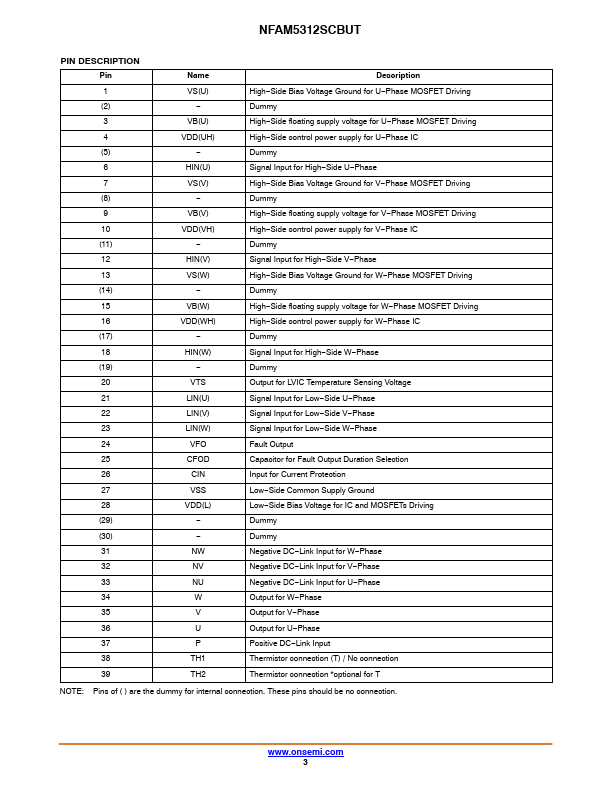

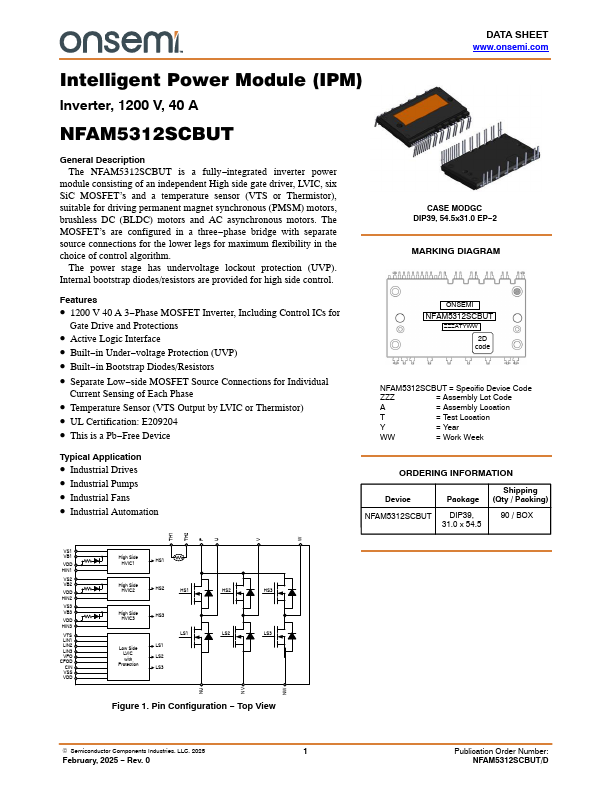

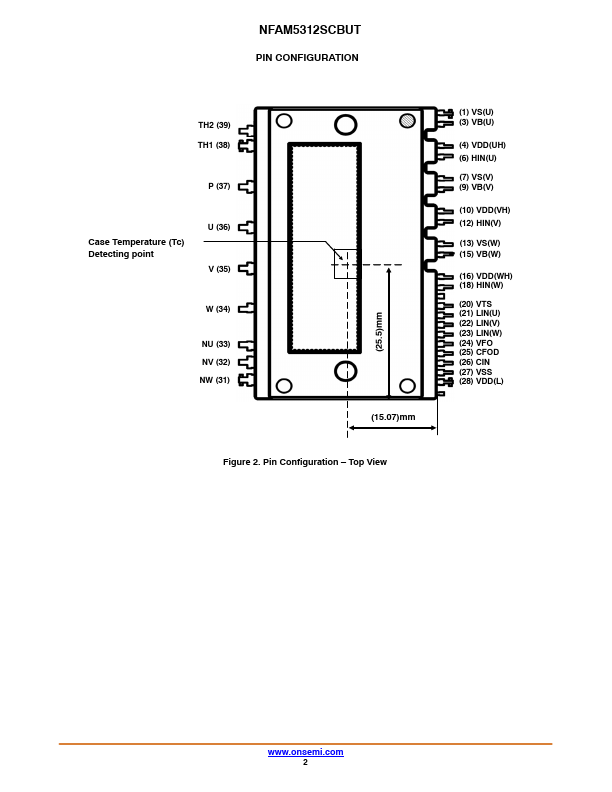

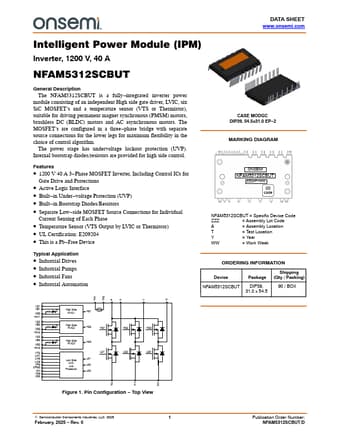

Additional preview pages of the NFAM5312SCBUT datasheet.

Product details

Description

The NFAM5312SCBUT is a fully integrated inverter power module consisting of an independent High side gate driver, LVIC, six SiC MOSFET’s and a temperature sensor (VTS or Thermistor), suitable for driving permanent magnet synchronous (PMSM) motors, brushless DC (BLDC) motors and AC asynchronous motors.The MOSFET’s are configured in a three phase bridge with separate source connections for the lower legs for maximum flexibility in the choice of control algorithm.

Features

1200 V 40 A 3.
Phase MOSFET Inverter, Including Control ICs for Gate Drive and Protections.
Active Logic Interface.
Built.
in Under.
voltage Protection (UVP).
Built.
in Bootstrap Diodes/Resistors.
Separate Low.
side MOSFET Source Connections for Individual Current Sensing of Each Phase.
Temperature Sensor (VTS Output by LVIC or Thermistor).
UL Certification: E209204.
This is a Pb.
F.
