NLAS5223BL, NLAS5223B Datasheet - ON Semiconductor

NLAS5223B_ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: NLAS5223BL, NLAS5223B. Please refer to the document for exact specifications by model.

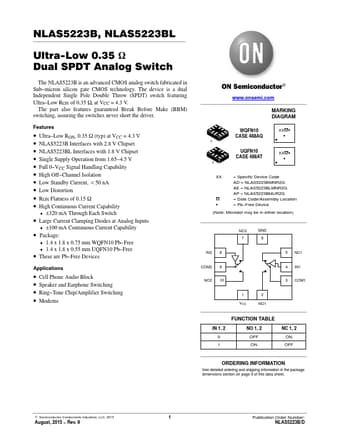

NLAS5223BL Datasheet Preview Page 2 NLAS5223BL Datasheet Preview Page 3

Datasheet Details

Part number:

NLAS5223BL, NLAS5223B

Manufacturer:

ON Semiconductor ↗

File Size:

114.40 KB

Description:

Ultra-low 0.5ohm dual spdt analog switch.

Note:

This datasheet PDF includes multiple part numbers: NLAS5223BL, NLAS5223B.
Please refer to the document for exact specifications by model.

NLAS5223BL, NLAS5223B, Ultra-Low 0.5ohm Dual SPDT Analog Switch

NLAS5223BL Features

* guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver. Features

* Ultra

* Low RON, 0.35 W (typ) at VCC = 4.3 V

* NLAS5223B Interfaces with 2.8 V Chipset

* NLAS5223BL Interfaces with 1.8 V Chipset

* Single Supply Operation fro
