NLAS4053 - Analog Multiplexer/Demultiplexer

Datasheet Summary

Features

  • Improved RDS(on) Specifications.
  • Pin for Pin Replacement for MAX4053 and MAX4053A.
  • One Half the Resistance Operating at 5.0 Volts.
  • Single or Dual Supply Operation.
  • Single 3.
  • 5 Volt Operation, or Dual ±3.0 Volt Operation.
  • With VCC of 3.0 to 3.3 V, Device Can Interface with 1.8 V Logic,.
  • No Translators Needed.
  • Address and Inhibit Pins are Over.
  • Voltage Tolerant and May Be.
  • Driven Up +6.0 V Regardless of.

📥 Download Datasheet

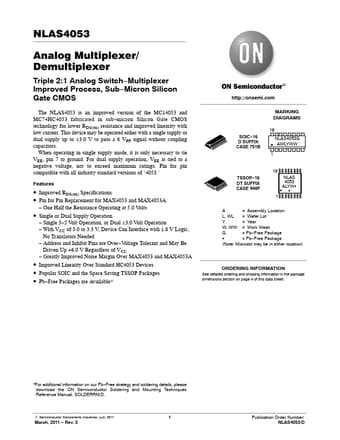

Datasheet preview – NLAS4053

Datasheet Details

Part number NLAS4053
Manufacturer ON
File Size 154.72 KB
Description Analog Multiplexer/Demultiplexer
Datasheet download datasheet NLAS4053 Datasheet
Additional preview pages of the NLAS4053 datasheet.

📁 Similar Datasheet

  • NLAS4051 - Analog Multiplexer/Demultiplexer (ON Semiconductor)
  • NLAS4051S - Analog Multiplexer/Demultiplexer (ON Semiconductor)
  • NLAS4052 - Analog Multiplexer/Demultiplexer (ON Semiconductor)
  • NLAS4157 - SPDT / 1 ohm RON Switch (ON Semiconductor)
  • NLAS44599 - Low Voltage Single Supply Dual DPDT Analog Switch (ON Semiconductor)
  • NLAS4501 - Single SPST Analog Switch (ON Semiconductor)
  • NLAS4685 - Ultra-Low Resistance Dual SPDT Analog Switch (ON Semiconductor)
  • NLAS4717 - Dual SPDT Analog Switch (ON Semiconductor)
  • NLAS4717EP - Dual SPDT Analog Switch (ON Semiconductor)
  • NLAS4783 - Triple SPDT Switch (ON Semiconductor)
Other Datasheets by ON
  • NLAS4599 - Low Voltage Single Supply SPDT Analog Switch
  • NLAS4684 - Ultra-Low Resistance Dual SPDT Analog Switch
  • NLAS323 - Dual SPST Analog Switch
  • NLAS324 - Dual SPST Analog Switch
  • NLAS3699 - Dual DPDT Switch
  • NLAST4051 - Analog Multiplexer/Demultiplexer

Full PDF Text Transcription

Click to expand full text
NLAS4053 Analog Multiplexer/ Demultiplexer Triple 2:1 Analog Switch−Multiplexer Improved Process, Sub−Micron Silicon Gate CMOS The NLAS4053 is an improved version of the MC14053 and MC74HC4053 fabricated in sub−micron Silicon Gate CMOS technology for lower RDS(on) resistance and improved linearity with low current. This device may be operated either with a single supply or dual supply up to ±3.0 V to pass a 6 VPP signal without coupling capacitors. When operating in single supply mode, it is only necessary to tie VEE, pin 7 to ground. For dual supply operation, VEE is tied to a negative voltage, not to exceed maximum ratings. Pin for pin compatible with all industry standard versions of ‘4053.
