NLAS4052 Datasheet - ON Semiconductor

NLAS4052 Analog Multiplexer/Demultiplexer

NLAS4052 Analog Multiplexer/ Demultiplexer Double Pole, 4 Position Plus Common Off The NLAS4052 is an improved version of the MC14052 and MC74HC4052 fabricated in sub micron Silicon Gate CMOS technology for lower RDS(on) resistance and improved linearity with low current. This device may be operated either with a single supply or dual supply up to ±3 V to pass a 6 VPP signal without coupling capacitors. When operating in single supply mode, it is only necessary to tie VEE.

NLAS4052_ONSemiconductor.pdf

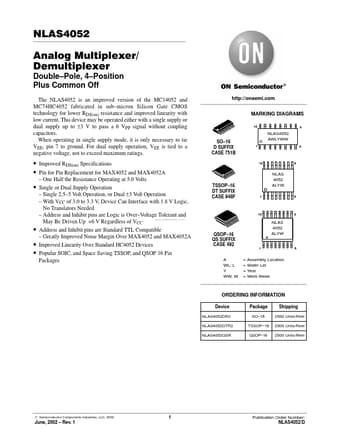

Preview of NLAS4052 PDF
NLAS4052 Datasheet Preview Page 2 NLAS4052 Datasheet Preview Page 3

Datasheet Details

Part number:

NLAS4052

Manufacturer:

ON Semiconductor ↗

File Size:

153.39 KB

Description:

Analog multiplexer/demultiplexer.
