NLAS44599 Datasheet - ON Semiconductor

NLAS44599 Low Voltage Single Supply Dual DPDT Analog Switch

NLAS44599 Low Voltage Single Supply Dual DPDT Analog Switch The NLAS44599 is an advanced dual independent CMOS double pole double throw (DPDT) analog switch fabricated with silicon gate CMOS technology. It achieves high speed propagation delays and low ON resistances while maintaining CMOS low power dissipation. This DPDT controls analog and digital voltages that may vary across the full power supply range (from VCC to GND). The device has been designed so the ON resista.

NLAS44599-ONSemiconductor.pdf

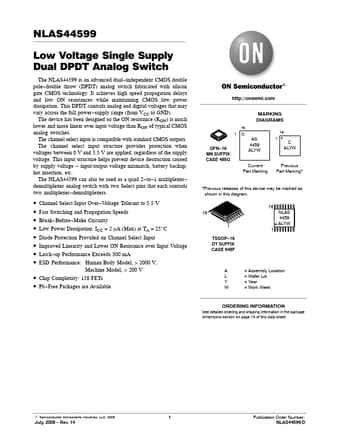

Preview of NLAS44599 PDF
NLAS44599 Datasheet Preview Page 2 NLAS44599 Datasheet Preview Page 3

Datasheet Details

Part number:

NLAS44599

Manufacturer:

ON Semiconductor ↗

File Size:

294.77 KB

Description:

Low voltage single supply dual dpdt analog switch.
