NLAS4051 Datasheet - ON Semiconductor

NLAS4051 Analog Multiplexer/Demultiplexer

www.DataSheet4U.com NLAS4051 Analog Multiplexer/ Demultiplexer TTL Compatible, Single Pole, 8 Position Plus Common Off The NLAS4051 is an improved version of the MC14051 and MC74HC4051 fabricated in sub micron Silicon Gate CMOS technology for lower RDS(on) resistance and improved linearity with low current. This device may be operated either with a single supply or dual supply up to ±3 V to pass a 6 VPP signal without coupling capacitors. When operating in single supply .

NLAS4051_ONSemiconductor.pdf

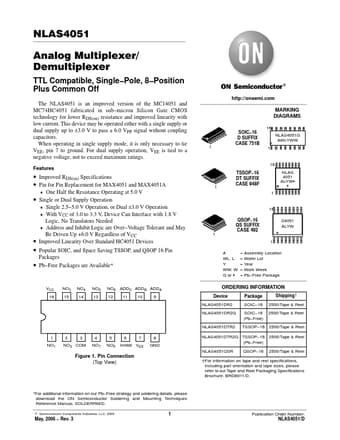

Preview of NLAS4051 PDF
NLAS4051 Datasheet Preview Page 2 NLAS4051 Datasheet Preview Page 3

Datasheet Details

Part number:

NLAS4051

Manufacturer:

ON Semiconductor ↗

File Size:

128.38 KB

Description:

Analog multiplexer/demultiplexer.
