NLAS4501 Datasheet - ON Semiconductor

NLAS4501 Single SPST Analog Switch

NLAS4501 Single SPST Analog Switch The NLAS4501 is an analog switch manufactured in sub-micron silicon-gate CMOS technology. It achieves very low RON while maintaining extremely low power dissipation. The device is a bilateral switch suitable for switching either analog or digital signals, which may vary from zero to full supply voltage. The NLAS4501 is pin-for-pin compatible with the MAX4501. The NLAS4501 can be used as a direct replacement for the MAX4501 in all 2.0 V to 5.5 V applications wh.

NLAS4501_ONSemiconductor.pdf

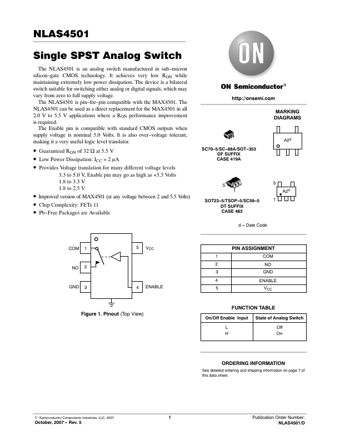

Preview of NLAS4501 PDF
NLAS4501 Datasheet Preview Page 2 NLAS4501 Datasheet Preview Page 3

Datasheet Details

Part number:

NLAS4501

Manufacturer:

ON Semiconductor ↗

File Size:

224.03 KB

Description:

Single spst analog switch.
