NLAS323 - Dual SPST Analog Switch

Datasheet Summary

Features

  • On Resistance is 20 W Typical at 5.0 V.
  • Matching is < 1.0 W Between Sections.
  • 2.0 to 6.0 V Operating Range.
  • Ultra Low < 5.0 pC Charge Injection.
  • Ultra Low Leakage < 1.0 nA at 5.0 V, 25 C.
  • Wide Bandwidth > 200 MHz,.
  • 3.0 dB.
  • 2000 V ESD (Human Body Model).
  • Ron Flatness $6.0 W at 5.0 V.
  • US8 Package.
  • Independent, Positive Enable.
  • These Devices are Pb.
  • Free, Halogen Free/BFR Free and are.

📥 Download Datasheet

Datasheet preview – NLAS323

Datasheet Details

Part number NLAS323
Manufacturer ON
File Size 90.79 KB
Description Dual SPST Analog Switch
Datasheet download datasheet NLAS323 Datasheet
Additional preview pages of the NLAS323 datasheet.

📁 Similar Datasheet

  • NLAS325 - Dual SPST Analog Switch (ON Semiconductor)
  • NLAS3257 - Low Voltage SPDT Mux / Demux Analog Switch (ON Semiconductor)
  • NLAS3257A - Mux / Demux Analog Switch (ON Semiconductor)
  • NLAS3157 - Low Voltage SPDT Mux / Demux Analog Switch (ON Semiconductor)
  • NLAS3158 - Low Voltage Dual SPDT Analog Switch Dual 2:1 Multiplexer (ON Semiconductor)
  • NLAS3699B - Dual DPDT Switch (ON Semiconductor)
  • NLAS3799 - Dual DPDT Ultra Low RON Switch (ON Semiconductor)
  • NLAS3799B - Dual DPDT Ultra Low RON Switch (ON Semiconductor)
  • NLAS3799BL - Dual DPDT Ultra Low RON Switch (ON Semiconductor)
  • NLAS3799L - Dual DPDT Ultra Low RON Switch (ON Semiconductor)
Other Datasheets by ON
  • NLAS324 - Dual SPST Analog Switch
  • NLAS3699 - Dual DPDT Switch
  • NLAS4053 - Analog Multiplexer/Demultiplexer
  • NLAS4599 - Low Voltage Single Supply SPDT Analog Switch
  • NLAS4684 - Ultra-Low Resistance Dual SPDT Analog Switch
  • NLAST4051 - Analog Multiplexer/Demultiplexer

Full PDF Text Transcription

Click to expand full text

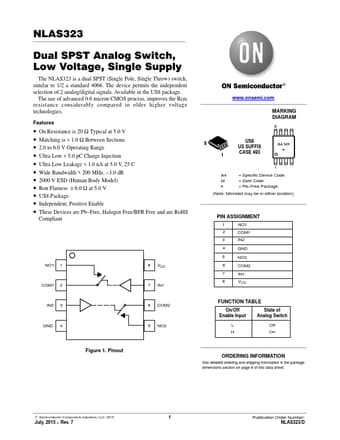

NLAS323 Dual SPST Analog Switch, Low Voltage, Single Supply The NLAS323 is a dual SPST (Single Pole, Single Throw) switch, similar to 1/2 a standard 4066. The device permits the independent selection of 2 analog/digital signals. Available in the US8 package. The use of advanced 0.6 micron CMOS process, improves the RON resistance considerably compared to older higher voltage technologies. Features • On Resistance is 20 W Typical at 5.0 V • Matching is < 1.0 W Between Sections • 2.0 to 6.0 V Operating Range • Ultra Low < 5.0 pC Charge Injection • Ultra Low Leakage < 1.0 nA at 5.0 V, 25 C • Wide Bandwidth > 200 MHz, −3.0 dB • 2000 V ESD (Human Body Model) • Ron Flatness $6.0 W at 5.
