NLAS3257A

Mux / Demux Analog Switch

ON Semiconductor

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	onsemi	NLAS3257AMU3TCG	IC SWITCH SPDT X 1 9.3OHM 6UDFN	DigiKey	0	0	$0	🛒 Buy Now

Download Datasheet (185.04 KB)

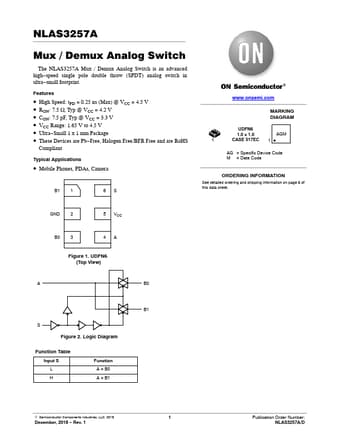

NLAS3257A Datasheet Preview — Preview of NLAS3257A Datasheet

Datasheet Details

Part number:

NLAS3257A

Manufacturer:

ON Semiconductor ↗

File Size:

185.04 KB

Description:

Mux / demux analog switch.
NLAS3257A Mux / Demux Analog Switch The NLAS3257A Mux / Demux Analog Switch is an advanced high*spe.
ed single pole double throw (SPDT) analog switch in ultra*small footprint. Features * High Speed: tP.

✔ NLAS3257A Features

High Speed: tPD = 0.25 ns (Max) @ VCC = 4.5 V
RON: 7.5 W, Typ @ VCC = 4.2 V
CON: 7.5 pF, Typ @ VCC = 3.3 V
VCC Range: 1.65 V to 4.5 V
Ultra
Small 1 x 1 mm Packa

✔ NLAS3257A Application

Mobile Phones, PDAs, Camera B1 1 6S www.onsemi.com MARKING DIAGRAM UDFN6 1.0 x 1.0 AGM 1 CASE 517
