NLAS3158 - Low Voltage Dual SPDT Analog Switch Dual 2:1 Multiplexer

ON Semiconductor

📥 Download Datasheet

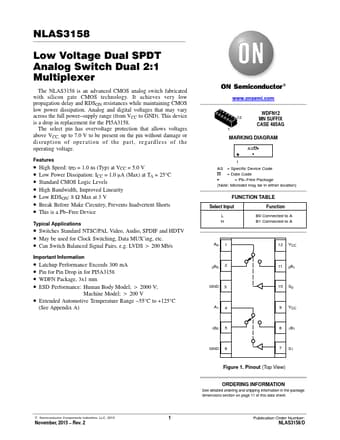

NLAS3158 Datasheet Preview — Preview of NLAS3158 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NLAS3158
Manufacturer	ON Semiconductor ↗
File Size	99.22 KB
Description	Low Voltage Dual SPDT Analog Switch Dual 2:1 Multiplexer
Datasheet	NLAS3158_ONSemiconductor.pdf

NLAS3158 Product details

Features

High Speed: tPD = 1.0 ns (Typ) at VCC = 5.0 V.
Low Power Dissipation: ICC = 1.0 mA (Max) at TA = 25°C.
Standard CMOS Logic Levels.
High Bandwidth, Improved Linearity.
Low RDSON: 8 W Max at 3 V.
Break Before Make Circuitry, Prevents Inadvertent Shorts.
This is a Pb.
Free Device Typical.
