NLAS3699B Datasheet, Switch, ON Semiconductor

NLAS3699B Features

  • Switch
  • Single Supply Operation 1.65 to 4.5 V VCC Function Directly from LiON Battery
  • Maximum Breakdown Voltage: 5.5 V
  • Tiny 3 x 3 mm QFN Pb
  • Free Package Me

PDF File Details

Part number:

NLAS3699B

Manufacturer:

ON Semiconductor ↗

File Size:

163.90kb

Download:

📄 Datasheet

Description:

Dual dpdt switch. QFN PIN # 1, 3, 5, 7, 9, 11, 13, 15 2, 10 4, 8, 12, 16 6 14 TRUTH TABLE IN H L

  • High impedance. Figure 1. Input Equivalent C

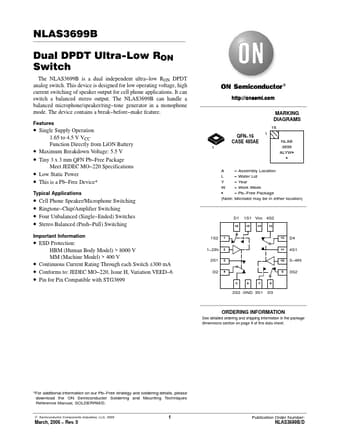

  • Datasheet Preview: NLAS3699B 📥 Download PDF (163.90kb)
    Page 2 of NLAS3699B Page 3 of NLAS3699B

    NLAS3699B Application

    • Applications It can switch a balanced stereo output. The NLAS3699B can handle a balanced microphone/speaker/ring
    • tone generator in a monoph
