NLAS4051S Datasheet - ON Semiconductor

NLAS4051S Analog Multiplexer/Demultiplexer

NLAS4051S Analog Multiplexer/ Demultiplexer TTL Compatible, Single Pole, 8 Position Plus Common Off The NLAS4051S is an improved version of the MC14051 and MC74HC4051 fabricated in sub micron Silicon Gate CMOS technology for lower RDS(on) resistance and improved linearity with low current. This device may be operated either with a single supply or dual supply up to ±3.0 V to pass a 6.0 VPP signal without coupling capacitors. When operating in single supply mode, it is on.

NLAS4051S Features

* Improved RDS(on) Specifications

* Pin for Pin Replacement for MAX4051 and MAX4051A

* One Half the Resistance Operating at 5.0 V

* Single or Dual Supply Operation

* Single 2.5

* 5.0 V Operation, or Dual ±3.0 V Operation

* With VCC of 3.0 to 3.3

NLAS4051S Datasheet (219.43 KB)

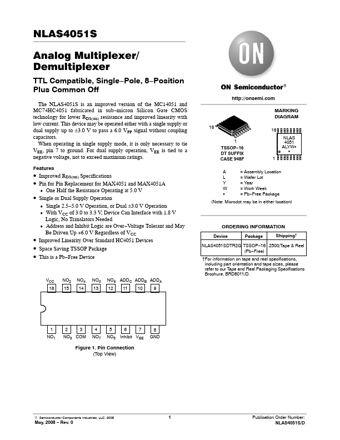

Preview of NLAS4051S PDF
NLAS4051S Datasheet Preview Page 2 NLAS4051S Datasheet Preview Page 3

Datasheet Details

Part number:

NLAS4051S

Manufacturer:

ON Semiconductor ↗

File Size:

219.43 KB

Description:

Analog multiplexer/demultiplexer.
