* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count
* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
* These Devices are Pb-Free, Halogen

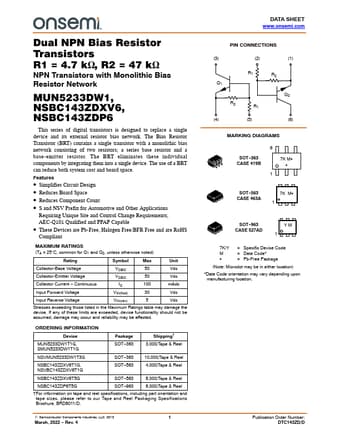

NSBC143ZDP6 Datasheet (380.03 KB)
NSBC143ZDP6
380.03 KB
Dual npn bias resistor transistors.
Dual NPN Bias Resistor Transistors R1 = 4.7 kW, R2 = 47 kW
NPN Transistors with Monolithic Bias Resistor Network
MUN5233DW1, NSBC143ZDXV6, NSBC143ZDP.
