NSBC143ZPDXV6 Complementary Bias Resistor Transistors

Complementary Bias Resistor Transistors R1 = 4.7 kW, R2 = 47 kW NPN and PNP Transistors with Monolithic Bias Resistor Network MUN5333DW1, NSBC143ZPDXV6, NSBC143ZPDP6 This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual compon.

NSBC143ZPDXV6 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb-Free, Ha

NSBC143ZPDXV6 Datasheet (406.06 KB)

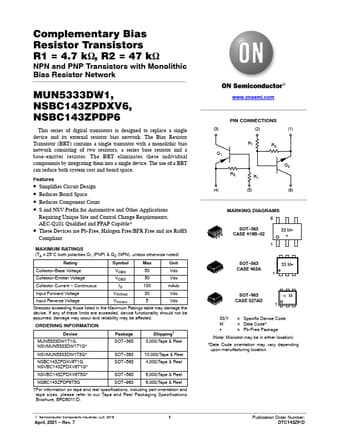

Preview of NSBC143ZPDXV6 PDF
NSBC143ZPDXV6 Datasheet Preview Page 2 NSBC143ZPDXV6 Datasheet Preview Page 3

Datasheet Details

Part number:

NSBC143ZPDXV6

Manufacturer:

ON Semiconductor ↗

File Size:

406.06 KB

Description:

Complementary bias resistor transistors.
