NSBC143ZMXWTBG Bias Resistor Transistors

Bias Resistor Transistors (BRT) NPN, 50 V, 100 mA NSBCMXW Series The series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor contains a single transistor with a monolithic bias network consisting of two resistors: a series base resistor and a base emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board .

NSBC143ZMXWTBG Features

* Built in Bias Resistors

* Complimentary PNP Types Available

* XDFNW3 Package Offers Low Seated Height

* 0.44 mm Max

* Wettable Flank Package for Optimal Automated Optical Inspection (AOI)

* NSV Prefix for Automotive and Other Applications Requiring U

NSBC114EMXWTBG-ONSemiconductorpdf

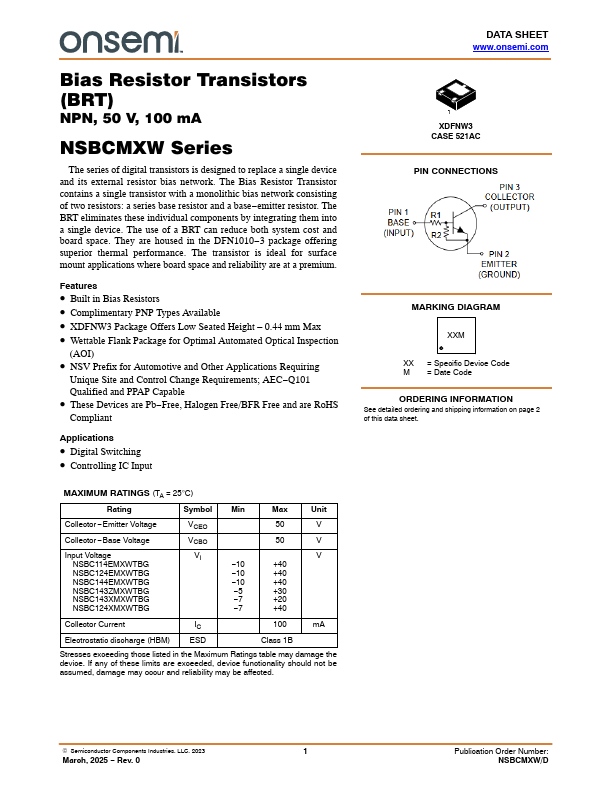

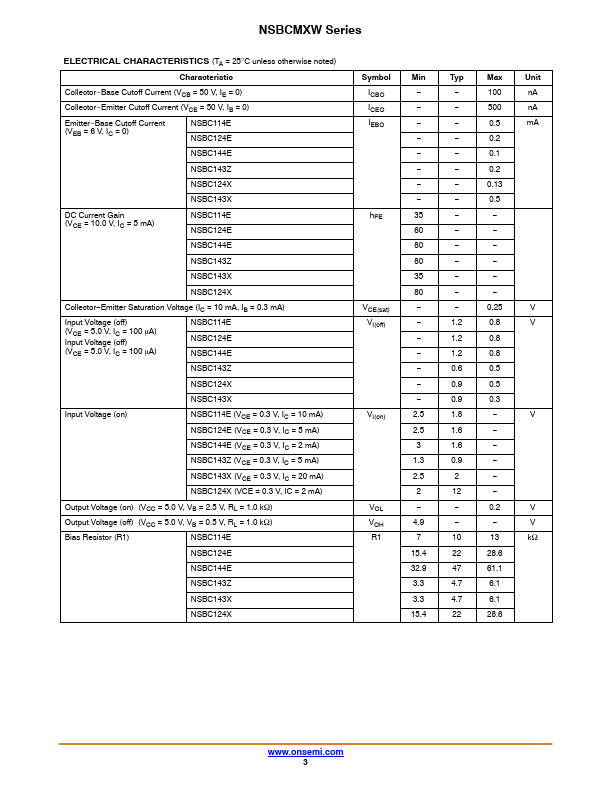

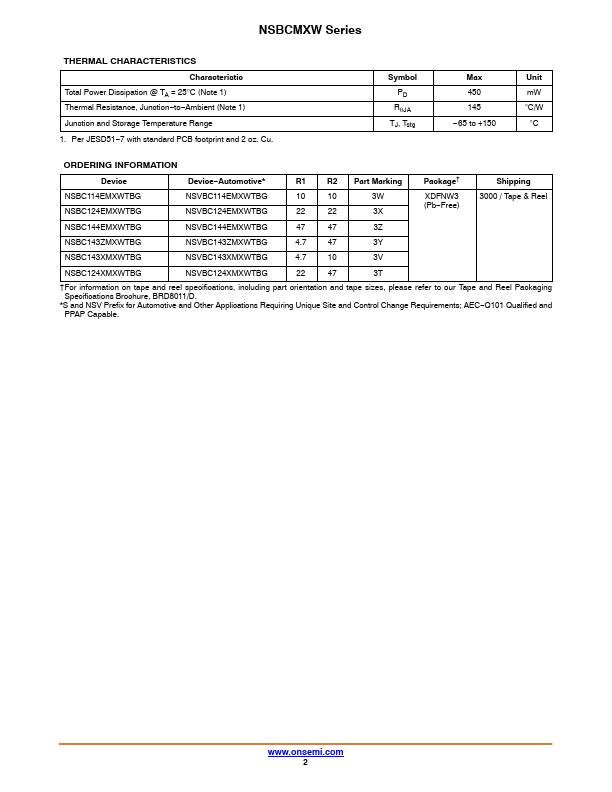

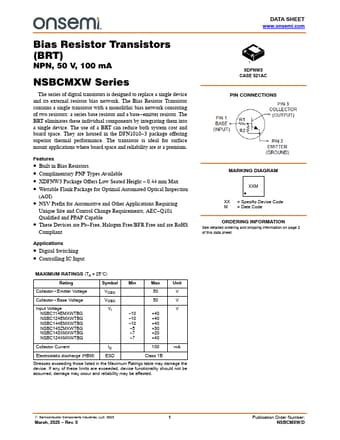

NSBC143ZMXWTBG Datasheet Preview — This datasheet PDF includes multiple part numbers: NSBC143ZMXWTBG, NSBC114EMXWTBG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NSBC143ZMXWTBG, NSBC114EMXWTBG

Manufacturer:

ON Semiconductor ↗

File Size:

171.62 KB

Description:

Bias resistor transistors.

Note:

This datasheet PDF includes multiple part numbers: NSBC143ZMXWTBG, NSBC114EMXWTBG.
Please refer to the document for exact specifications by model.
