* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count
* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Fre
NSBC143ZF3 Datasheet (559.35 KB)
NSBC143ZF3
559.35 KB
Digital transistors.

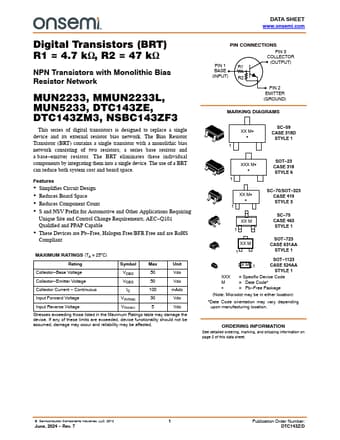

DATA SHEET www.onsemi.com
Digital Transistors (BRT) R1 = 4.7 kW, R2 = 47 kW
NPN Transistors with Monolithic Bias Resistor Network
MUN2233, MMUN2233.
