NTD20N06, NTDV20N06 N-channel MOSFET

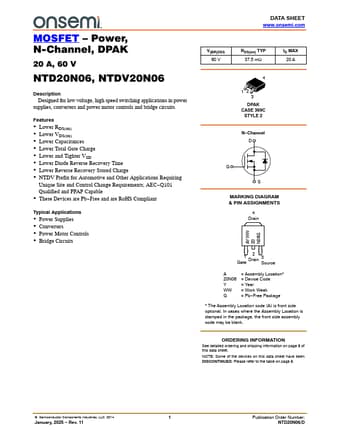

📥 Download Datasheet Datasheet Preview Page 1

Description

MOSFET * Power, N-Channel, DPAK 20 A, 60 V NTD20N06, NTDV20N06 .
Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls and bridge circuits.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NTD20N06, NTDV20N06. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NTD20N06, NTDV20N06
Manufacturer
ON Semiconductor ↗
File Size
215.30 KB
Datasheet
NTDV20N06-ONSemiconductor.pdf
Description
N-channel MOSFET
Note
This datasheet PDF includes multiple part numbers: NTD20N06, NTDV20N06.
Please refer to the document for exact specifications by model.

Features

* Lower RDS(on)
* Lower VDS(on)
* Lower Capacitances
* Lower Total Gate Charge
* Lower and Tighter VSD
* Lower Diode Reverse Recovery Time
* Lower Reverse Recovery Stored Charge
