NTD25P03LG P-Channel 30V MOSFET

VBsemi

Description

NTD25P03LG P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.033 at VGS = - 10 V 0.046 at VGS = - 4.5 V ID (A)d - 26 - 21.

📥 Download Datasheet

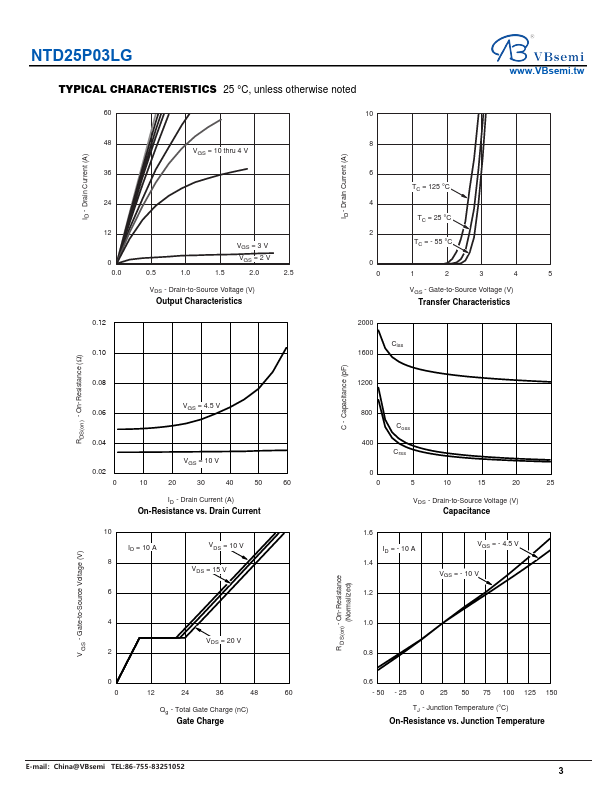

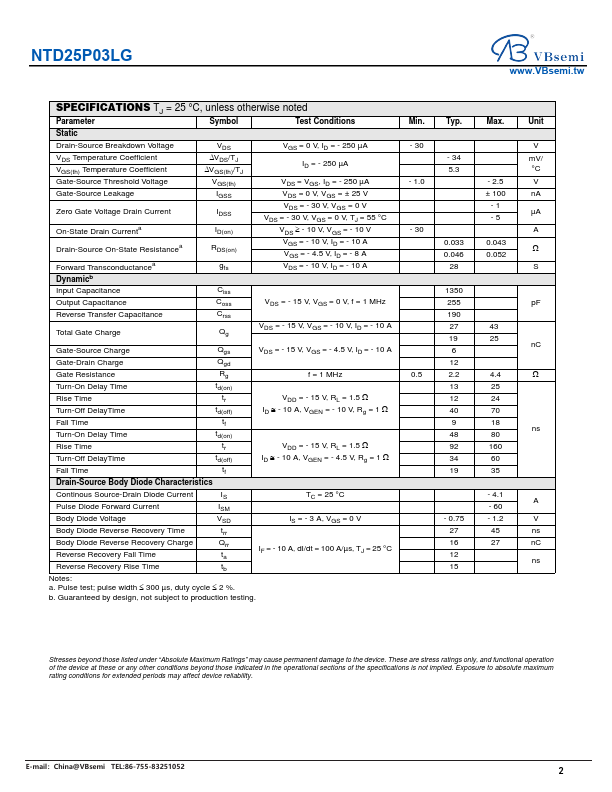

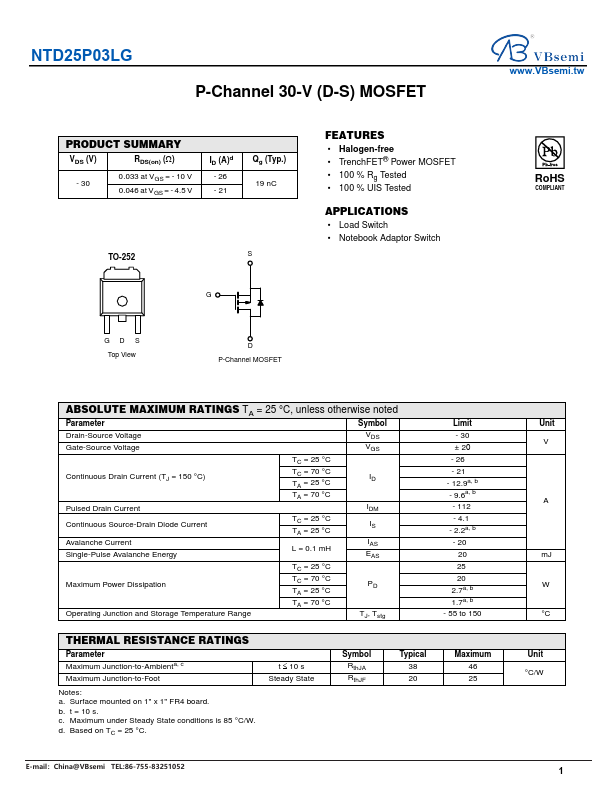

NTD25P03LG Datasheet Preview — Preview of NTD25P03LG PDF

Datasheet Specifications

Part number: NTD25P03LG
Manufacturer: VBsemi
File Size: 811.28 KB
Datasheet: NTD25P03LG-VBsemi.pdf
Description: P-Channel 30V MOSFET

Features

* Halogen-free
* TrenchFET® Power MOSFET
* 100 % Rg Tested

Applications

* Load Switch
* Notebook Adaptor Switch GDS Top View D P-Channel MOSFET www. VBsemi. tw RoHS COMPLIANT ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150
