NTD20P06LT4G P-Channel MOSFET

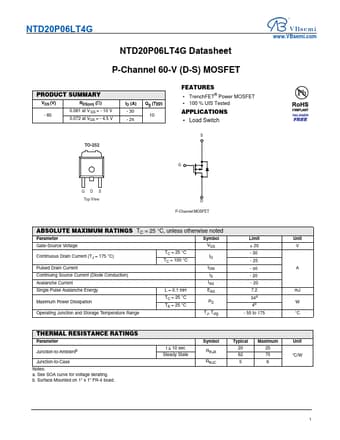

📥 Download Datasheet Datasheet Preview Page 1

Description

NTD20P06LT4G NTD20P06LT4G Datasheet P-Channel 60-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) - 60 RDS(on) (Ω) 0.061 at V GS = - 10 V 0.072 at VGS = - .

📥 Download Datasheet

Preview of NTD20P06LT4G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NTD20P06LT4G
Manufacturer
VBsemi
File Size
317.73 KB
Datasheet
NTD20P06LT4G-VBsemi.pdf
Description
P-Channel MOSFET

Features

* TrenchFET® Power MOSFET

Applications

* Load Switch S TO-252 G www. VBsemi. com GDS Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 100 °C ID - 30 - 25 Pulsed
