NTD23N03R - 23 Amps / 25 Volts / N-Channel DPAK

ON

📥 Download Datasheet

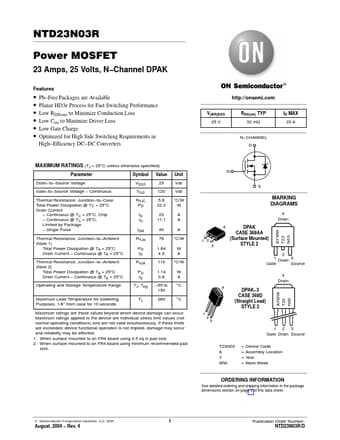

NTD23N03R Datasheet Preview — Preview of NTD23N03R PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NTD23N03R
Manufacturer	ON
File Size	64.03 KB
Description	23 Amps / 25 Volts / N-Channel DPAK
Datasheet	NTD23N03R_ONSemiconductor.pdf

NTD23N03R Product details

Features

Pb.
Free Packages are Available Planar HD3e Process for Fast Switching Performance Low RDS(on) to Minimize Conduction Loss Low Ciss to Minimize Driver Loss Low Gate Charge Optimized for High Side Switching Requirements in High.
Efficiency DC.
DC Converters http://onsemi. com V(BR)DSS 25 V RDS(on) TYP 32 mW N.
