NVD4C05N N-Channel MOSFET

NVD4C05N Description

NVD4C05N MOSFET * Power, Single, N-Channel 30 V, 4.1 mW, 90 A .

NVD4C05N Features

* Low RDS(on) to Minimize Conduction Losses
* Low QG and Capacitance to Minimize Driver Losses
* AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TJ = 25°C unless otherwise

📥 Download Datasheet

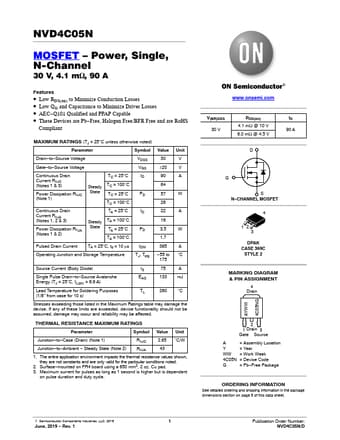

Preview of NVD4C05N PDF
