NVH4L040N120SC1 SiC MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

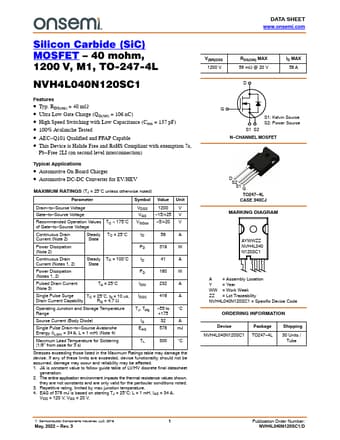

DATA SHEET www.onsemi.com Silicon Carbide (SiC) MOSFET * 40 mohm, 1200 V, M1, TO-247-4L NVH4L040N120SC1 .

📥 Download Datasheet

Preview of NVH4L040N120SC1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Typ. RDS(on) = 40 mW
* Ultra Low Gate Charge (QG(tot) = 106 nC)
* High Speed Switching with Low Capacitance (Coss = 137 pF)
* 100% Avalanche Tested
* AEC
* Q101 Qualified and PPAP Capable
* This Device is Halide Free and RoHS Compliant with exe

Applications

* Automotive On Board Charger
* Automotive DC-DC Converter for EV/HEV MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Parameter Symbol Value Unit Drain
* to
* Source Voltage VDSS 1200 V Gate
* to
* Source Voltage VGS
* 15/+25 V Recommended
