SA5532 Datasheet, Amplifier, ON Semiconductor

SA5532 Features

  • Amplifier
  • Small-Signal Bandwidth: 10 MHz
  • Output Drive Capability: 600 W, 10 VRMS
  • Input Noise Voltage: 5.0 nVń ǸHz (Typical)
  • DC Voltage Gain: 50000

PDF File Details

Part number:

SA5532

Manufacturer:

ON Semiconductor ↗

File Size:

124.00kb

Download:

📄 Datasheet

Description:

Internally compensated dual low noise operational amplifier.

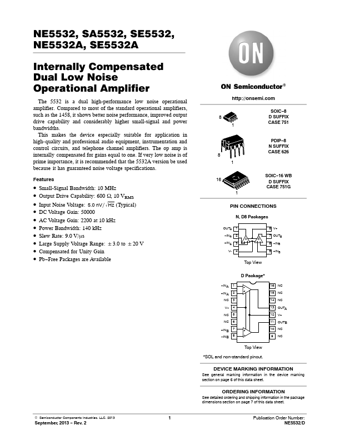

Datasheet Preview: SA5532 📥 Download PDF (124.00kb)
Page 2 of SA5532 Page 3 of SA5532
