SBAT54CWT1G Dual Series Schottky Barrier Diodes

SBAT54CWT1G Description

BAT54CWT1G, SBAT54CWT1G Dual Series Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit.

SBAT54CWT1G Features

* Extremely Fast Switching Speed
* Low Forward Voltage
* 0.35 V (Typ) @ IF = 10 mAdc
* AEC Qualified and PPAP Capable

📥 Download Datasheet

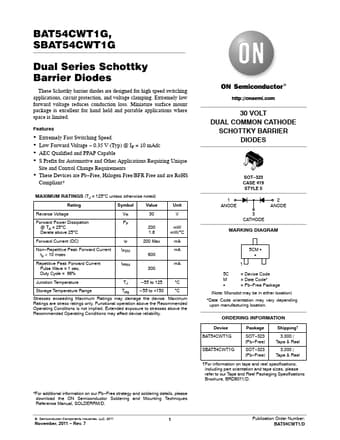

Preview of SBAT54CWT1G PDF
datasheet Preview Page 2 datasheet Preview Page 3
