SURS8360T3G Surface Mount Ultrafast Power Rectifiers

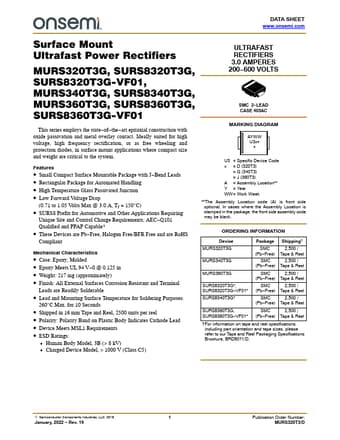

DATA SHEET www.onsemi.com Surface Mount Ultrafast Power Rectifiers MURS320T3G, SURS8320T3G, SURS8320T3G-VF01, MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G, SURS8360T3G-VF01 This series employs the state of the art epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes, in surface mount applications where compact size and weight are critical to th.

SURS8360T3G Features

* Small Compact Surface Mountable Package with J

* Bend Leads

* Rectangular Package for Automated Handling

* High Temperature Glass Passivated Junction

* Low Forward Voltage Drop (0.71 to 1.05 Volts Max @ 3.0 A, TJ = 150°C)

* SURS8 Prefix for Automotive
