AFR240320A0-1.77INTM Datasheet - ORIENT DISPLAY

TFT LCD

AFR240320A0-1.77INTM Features

* 4 1.2 Mechanical Information 4 2. Block Diagram 5 3. Outline Dimension 6 4. Input terminal Pin Assignment 7 5. LCD Optical Characteristics 9 5.1 Optical specification 9 5.2 Measuring Condition 9 5.3 Measuring Equipment 10 6. Electrical Characteristics 11 6.1 Absolute Maximum Rating (Ta=25 VSS

AFR240320A0-1.77INTM General Description

This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit, back-light unit. The resolution of a 1.77’TFT-LCD contains 240x320 pixels, and ca.

AFR240320A0-1.77INTM Datasheet (967.31 KB)

Preview of AFR240320A0-1.77INTM PDF

Datasheet Details

Part number:

AFR240320A0-1.77INTM

Manufacturer:

ORIENT DISPLAY

File Size:

967.31 KB

Description:

Tft lcd.

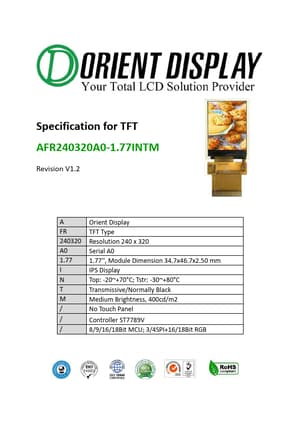

Specification for TFT AFR240320A0-1.77INTM Revision V1.2 A FR 240320 A0 1.77 I N T M / / / Orient Display TFT Type Resolution 240 x 320 Serial A0 1..
