AFR240320A0-2.0INTM-I Datasheet - ORIENT DISPLAY

AFR240320A0-2.0INTM-I TFT LCD

This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This module is composed of a Transmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 2.0’TFT-LCD contains 240X320 pixels, and can .

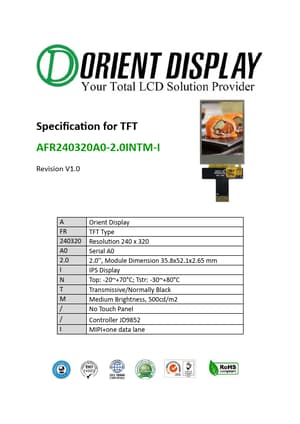

Speciﬁcation for TFT AFR240320A0-2.0INTM-I Revision V1.0 A FR 240320 A0 2.0 I N T M / / I Orient Display TFT Type Resolution 240 x 320 Serial A0 2.0'', Module Dimension 35.8x52.1x2.65 mm IPS Display Top: -20~+70°C; Tstr: -30~+80°C Transmissive/Normally Black Medium Brightness, 500cd/m2 No Touch Panel Controller JD9852 MIPI+one data lane Revision History Date Rev. No. Page Summary 2019.06.11 V1.0 ALL FIRST ISSUE Orient Display (N.A.) Ltd. 220 Royal Crest Court,Unit 06,Markham,ON,Canada L3.

AFR240320A0-2.0INTM-I Features

* 4 1.2 Mechanical Information 4 2. Block Diagram 5 3. Outline Dimension 6 4. Input terminal Pin Assignment 7 5. LCD Optical Characteristics 8 5.1 Optical Specification 8 5.2 Measuring Condition 8 5.3 Measuring Equipment 9 6. Electrical Characteristics 11 6.1 Absolute Operation Rating (Ta=25 VSS=
