AFR240320A0-2.2INTM TFT LCD

This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) th at uses amorphous silicon TFT as a switching device. This model is composed of a T ransmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 2.2’ TFT-LCD contains 240X320 pixels, and ca.

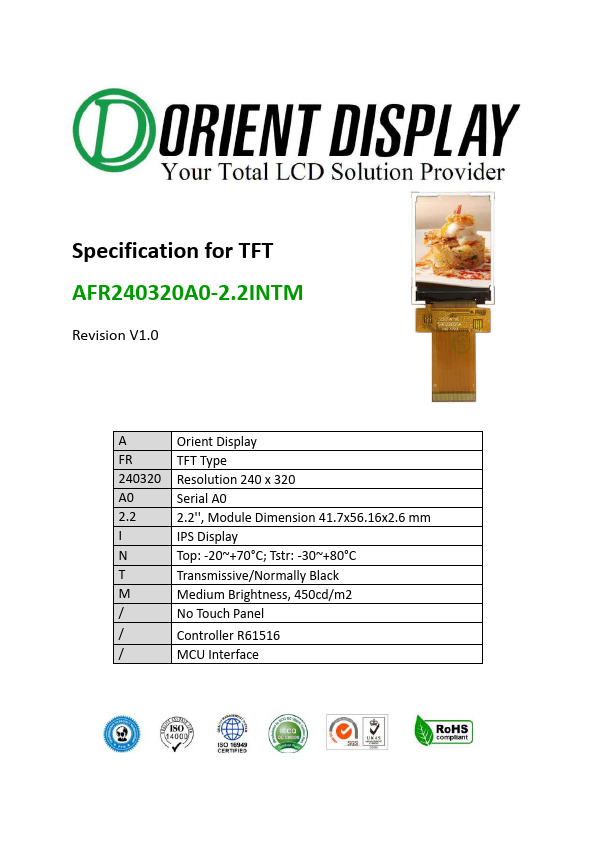

Specification for TFT AFR240320A0-2.2INTM Revision V1.0 A FR 240320 A0 2.2 I N T M / / / Orient Display TFT Type Resolution 240 x 320 Serial A0 2.2'', Module Dimension 41.7x56.16x2.6 mm IPS Display Top: -20~+70°C; Tstr: -30~+80°C Transmissive/Normally Black Medium Brightness, 450cd/m2 No Touch Panel Controller R61516 MCU Interface Revision History Date Rev. No. Page Summary 2019.04.11 V1.0 ALL FIRST ISSUE Orient Display (N.A.) Ltd. 220 Royal Crest Court,Unit 06,Markham,ON,Canada L3R 9Y2 .

AFR240320A0-2.2INTM Features

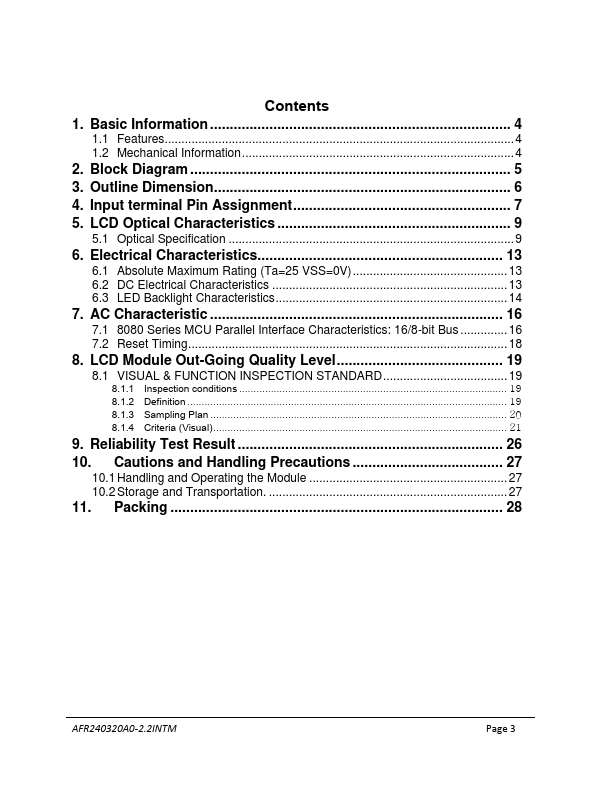

* 4 1.2 Mechanical Information 4 2. Block Diagram 5 3. Outline Dimension 6 4. Input terminal Pin Assignment 7 5. LCD Optical Characteristics 9 5.1 Optical Specification 9 6. Electrical Characteristics 13 6.1 Absolute Maximum Rating (Ta=25 VSS=0V) 13 6.2 DC Electrical Characteristics 13 6.3 LED B
