AFR240320A0-2.0INTM Datasheet - ORIENT DISPLAY

AFR240320A0-2.0INTM TFT LCD

This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 2.0’TFT-LCD contains 240x320 pixels, and can .

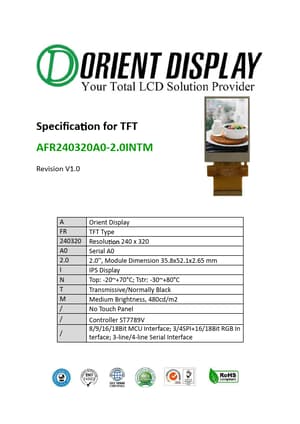

Speciﬁca on for TFT AFR240320A0-2.0INTM Revision V1.0 A FR 240320 A0 2.0 I N T M / / / Orient Display TFT Type Resolu 240 x 320 Serial A0 2.0'', Module Dimension 35.8x52.1x2.65 mm IPS Display Top: -20~+70°C; Tstr: -30~+80°C Transmissive/Normally Black Medium Brightness, 480cd/m2 No Touch Panel Controller ST7789V 8/9/16/18Bit MCU Interface; 3/4SPI+16/18Bit RGB In terface; 3-line/4-line Serial Interface Revision History Date Rev. No. Page Summary 2017.12.06 V1.0 ALL FIRST ISSUE Orient Disp.

AFR240320A0-2.0INTM Features

* 4 1.2 Mechanical Information 4 2. Block Diagram 5 3. Outline Dimension 6 4. Input terminal Pin Assignment 7 5. LCD Optical Characteristics 9 5.1 Optical specification 9 5.2 Measuring Condition 9 5.3 Measuring Equipment 10 6. Electrical Characteristics 13 6.1 Absolute Operation Rating (Ta=25
