AFR240320A0-2.4INTM-I TFT LCD

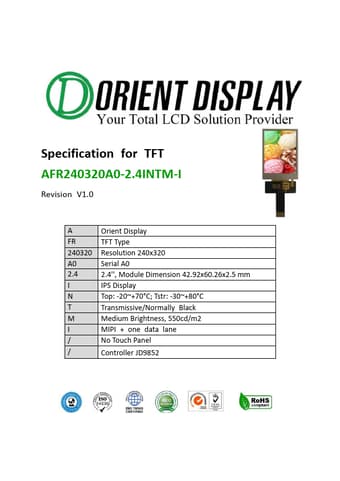

Specification for TFT AFR240320A0-2.4INTM-I Revision V1.0 A FR 240320 A0 2.4 I N T M I / / Orient Display TFT Type Resolution 240x320 Serial A0 2.4'', Module Dimension 42.92x60.26x2.5 mm IPS Display Top: -20~+70°C; Tstr: -30~+80°C Transmissive/Normally Black Medium Brightness, 550cd/m2 MIPI + one data lane No Touch Panel Controller JD9852 Revision History Date Rev. No. Page 2019.06.10 V1.0 ALL Summary FIRST ISSUE Orient Display (N.A.) Ltd. 220 Royal Crest Court,Unit 06,Markham,ON,Canada L3R.

AFR240320A0-2.4INTM-I Features

* General Information Items Display area(AA) Driver element Display colors Number of pixels Pixel arrangement Pixel pitch Viewing angle Controller IC LCM Interface Display mode Operating temperature Storage temperature Specification Main Panel 36.72(H)

* 48.96(V) (2.4inch) TFT active matrix 65K/26
