OSG50R1K5DF, OSG50R1K5AF, N-Channel Power MOSFET

, OSG50R1K5AF/OSG50R1K5DF/OSG50R1K5FF/OSG50R1K5PF Enhancement Mode N-Channel Power MOSFET * General .
OSG50R1K5xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics.

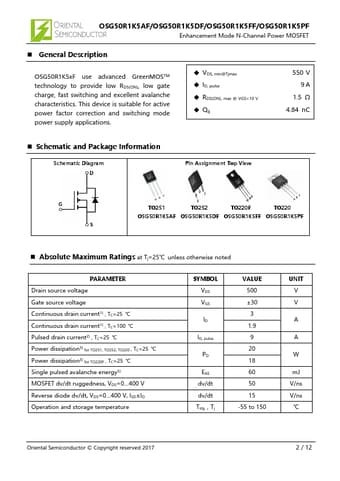

datasheet Preview Page 1 from Datasheet4u.com

OSG50R1K5AF-OrientalSemiconductor.pdf

OSG50R1K5DF Datasheet Preview — This datasheet PDF includes multiple part numbers: OSG50R1K5DF, OSG50R1K5AF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

OSG50R1K5DF, OSG50R1K5AF

Manufacturer:

Oriental Semiconductor

File Size:

818.47 KB

Description:

N-Channel Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: OSG50R1K5DF, OSG50R1K5AF.
Please refer to the document for exact specifications by model.

Applications

* VDS, min@Tjmax
* ID, pulse
* RDS(ON), max @ VGS=10 V
* Qg 550 V 9A 1.5 Ω 4.84 nC
* Schematic and Package Information Schematic Diagram Pin Assignment Top View TO251 TO252 TO220F TO220 OSG50R1K5AF OSG50R1K5DF OSG50R1K5FF OSG50R1K5PF
* Absolute Maximum Ratings at T
