OSG50R1K5PF, OSG50R1K5AF - N-Channel Power MOSFET

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OSG50R1K5PF, OSG50R1K5AF. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number OSG50R1K5PF, OSG50R1K5AF
Manufacturer Oriental Semiconductor
File Size 818.47 KB
Description N-Channel Power MOSFET
Datasheet download datasheet OSG50R1K5AF-OrientalSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: OSG50R1K5PF, OSG50R1K5AF.
Please refer to the document for exact specifications by model.

OSG50R1K5PF Product details

Description

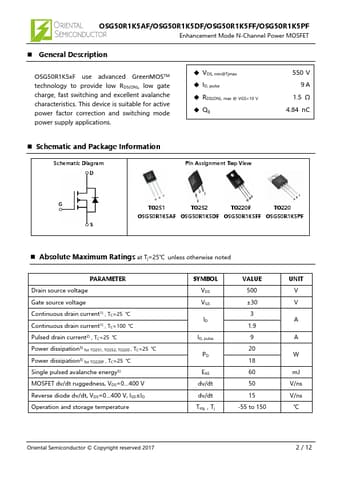

OSG50R1K5xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. VDS, min@Tjmax ID, pulse RDS(ON), max @ VGS=10 V Qg 550 V 9A 1.5 Ω 4.84 nC Schematic and Package Information Schematic Diagram Pin Assignment Top View TO251 TO252 TO220F TO220 OSG50R1K5AF OSG50R1K5DF OSG50R1K5FF
