OSG55R092HF, N-Channel Power MOSFET

, OSG55R092HF Enhancement Mode N-Channel Power MOSFET * General .
OSG55R092HF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics.

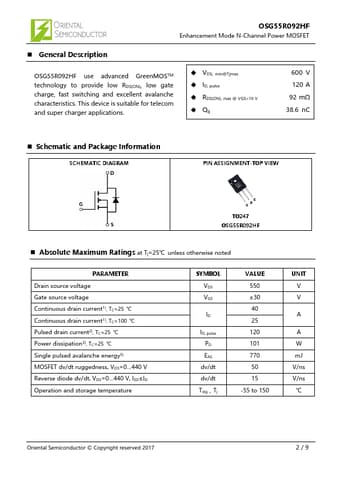

datasheet Preview Page 1 from Datasheet4u.com

OSG55R092HF-OrientalSemiconductor.pdf

OSG55R092HF Datasheet Preview — Preview of OSG55R092HF PDF

Datasheet Details

Part number:

OSG55R092HF

Manufacturer:

Oriental Semiconductor

File Size:

716.35 KB

Description:

N-Channel Power MOSFET

Applications

* VDS, min@Tjmax
* ID, pulse
* RDS(ON), max @ VGS=10 V
* Qg 600 V 120 A 92 mΩ 38.6 nC
* Schematic and Package Information SCHEMATIC DIAGRAM PIN ASSIGNMENT-TOP VIEW TO247 OSG55R092HF
* Absolute Maximum Ratings at Tj=25℃ unless otherwise noted PARAMETER Drain source vol
