OSG55R140PF, OSG55R140FF N-Channel Power MOSFET

Description

, OSG55R140FF, OSG55R140PF, OSG55R140RF, OSG55R140HF Enhancement Mode N-Channel Power MOSFET * General .
OSG55R140xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics.

📥 Download Datasheet

OSG55R140PF Datasheet Preview — This datasheet PDF includes multiple part numbers: OSG55R140PF, OSG55R140FF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: OSG55R140PF, OSG55R140FF
Manufacturer: Oriental Semiconductor
File Size: 0.97 MB
Datasheet: OSG55R140FF-OrientalSemiconductor.pdf
Description: N-Channel Power MOSFET
Note: This datasheet PDF includes multiple part numbers: OSG55R140PF, OSG55R140FF.
Please refer to the document for exact specifications by model.

Applications

* VDS, min@Tjmax
* ID, pulse
* RDS(ON), max @ VGS=10 V
* Qg 600 V 69 A 140 mΩ 24.1 nC

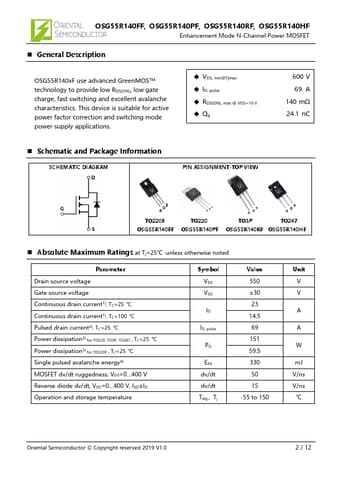

* Schematic and Package Information SCHEMATIC DIAGRAM PIN ASSIGNMENT-TOP VIEW TO220F TO220 TO3P TO247 OSG55R140FF OSG55R140PF OSG55R140RF OSG55R140HF
