OSG55R140FF, N-Channel Power MOSFET

, OSG55R140FF, OSG55R140PF, OSG55R140RF, OSG55R140HF Enhancement Mode N-Channel Power MOSFET * General .
OSG55R140xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics.
datasheet Preview Page 1 from Datasheet4u.com

OSG55R140FF-OrientalSemiconductor.pdf

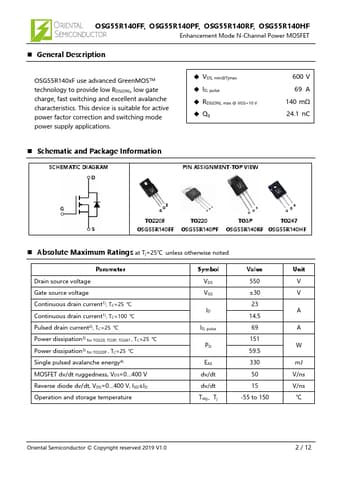

Preview of OSG55R140FF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

OSG55R140FF

Manufacturer:

Oriental Semiconductor

File Size:

0.97 MB

Description:

N-Channel Power MOSFET

Applications

* VDS, min@Tjmax
* ID, pulse
* RDS(ON), max @ VGS=10 V
* Qg 600 V 69 A 140 mΩ 24.1 nC
* Schematic and Package Information SCHEMATIC DIAGRAM PIN ASSIGNMENT-TOP VIEW TO220F TO220 TO3P TO247 OSG55R140FF OSG55R140PF OSG55R140RF OSG55R140HF
* Absolute Maximum Ratings at
