OSG65R900, OSG65R900A, Enhancement Mode N-Channel Power MOSFET

* General .
OSG65R900A,OSG65R900D,OSG65R900F Enhancement Mode N-Channel Power MOSFET OSG65R900x series use advanced GreenMOSTM technology to provide low RDS(ON).

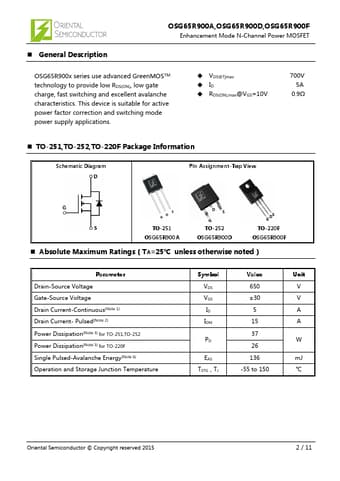

datasheet Preview Page 1 from Datasheet4u.com

OSG65R900A-OrientalSemiconductor.pdf

OSG65R900 Datasheet Preview — This datasheet PDF includes multiple part numbers: OSG65R900, OSG65R900A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

OSG65R900, OSG65R900A

Manufacturer:

Oriental Semiconductor

File Size:

825.89 KB

Description:

Enhancement Mode N-Channel Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: OSG65R900, OSG65R900A.
Please refer to the document for exact specifications by model.

Applications

* VDS@Tjmax
* ID
* RDS(ON),max@VGS=10V 700V 5A 0.9Ω
* TO-251,TO-252,TO-220F Package Information Schematic Diagram Pin Assignment-Top View TO-251 OSG65R900A TO-252 OSG65R900D TO-220F OSG65R900F
* Absolute Maximum Ratings（TA=25℃ unless otherwise noted） Parameter Drain-So
