RS2201

Switching Power Supply Controller

RS2201 Features

* Over-load and saturation protection could protect over-load, switch transformer saturation and output short circuit or the relative failures. It is economical that triode is used for switch device, which could start up the circuit with its amplification function and reduce ten times of power consump

RS2201 General Description

RS2201, produced by advanced integrated circuit process, is a switch power supply controller, which could offer over-load and saturation protection, and achieve green economize on energy and environmental protection standard. RS2201 could achieve AC/DC conversion and can be widely applied to economi.

RS2201 Datasheet (617.81 KB)

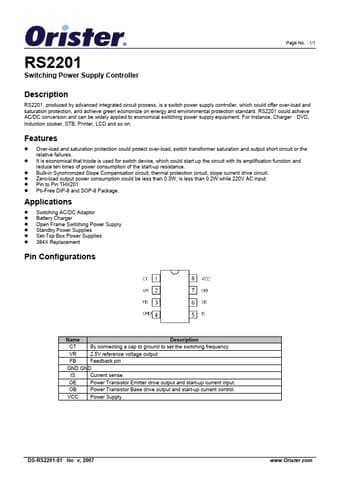

Preview of RS2201 PDF

Datasheet Details

Part number:

RS2201

Manufacturer:

Orister

File Size:

617.81 KB

Description:

Switching power supply controller.
