SB2580CT, SB2520CT SCHOTTKY BARRIER RECTIFIER

SB2580CT Description

SB2520CT thru SB25150CT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 TO 150 VOLTS CURRENT - 25 AMPERES TO-220AB .

SB2580CT Features

* Plastic Package has Underwriters Laboratory Flammability Classification 94-0 utilizing Flame Retardant Epoxy Molding Compound Exceeds environmental standards of MIL-S-19500/228 Low power loss, gigh efficiency Low Forward Voltage, high Current Capability High surge Capability For use low Voltage, hig

SB2580CT Applications

* High temperature soldering 260oC/10seconds at terminals Pb free product are available 99% Sn above can meet RoHS environment substance directive request MECHANICAL DATA Case TO220AB Molded plastic Terminals Lead solderable per MIL-STD-202, Method 208 Polarity As Marked on Body Mounting Position Any

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB2580CT, SB2520CT. Please refer to the document for exact specifications by model.

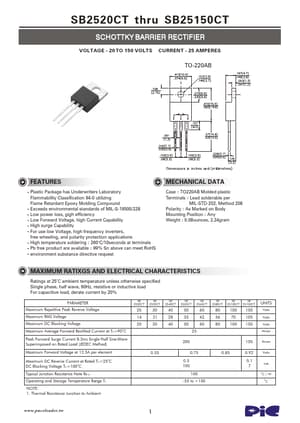

datasheet Preview Page 2

Datasheet Details

Part number
SB2580CT, SB2520CT
Manufacturer
PACELEADER
File Size
154.82 KB
Datasheet
SB2520CT-PACELEADER.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB2580CT, SB2520CT.
Please refer to the document for exact specifications by model.
