MCL4148 FAST SWITCHING SURFACE MOUNT DIODES

PANJIT

Description

MCL4148 FAST SWITCHING SURFACE MOUNT DIODES VOLTAGE 100 Volts POWER 500 mWatts .

📥 Download Datasheet

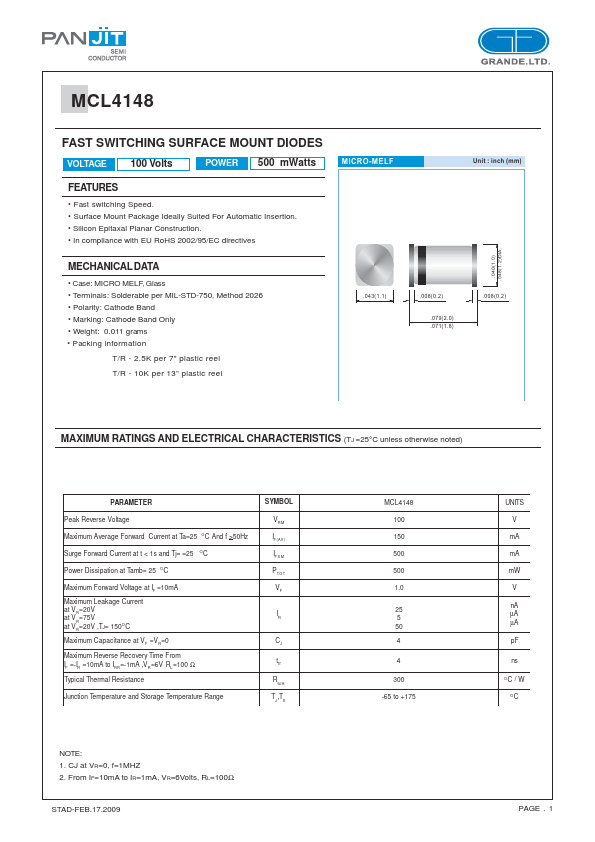

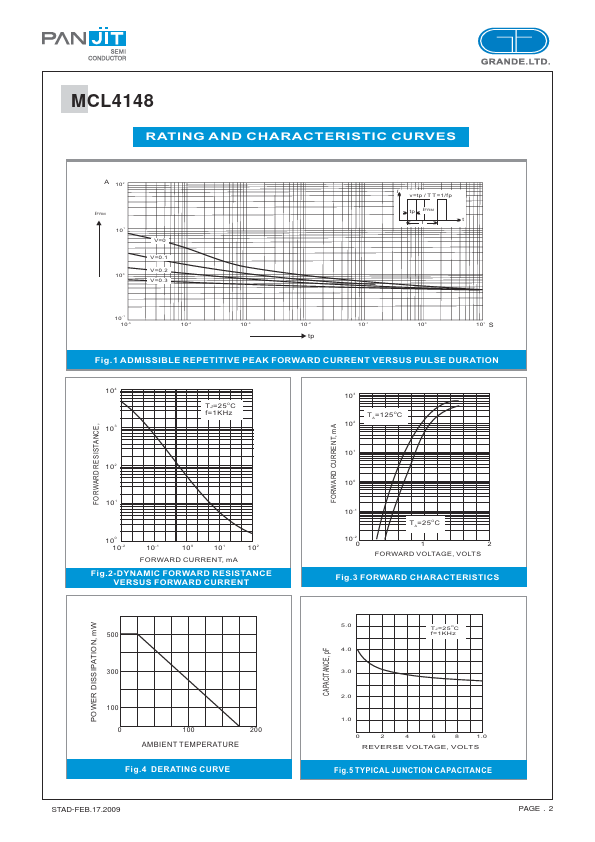

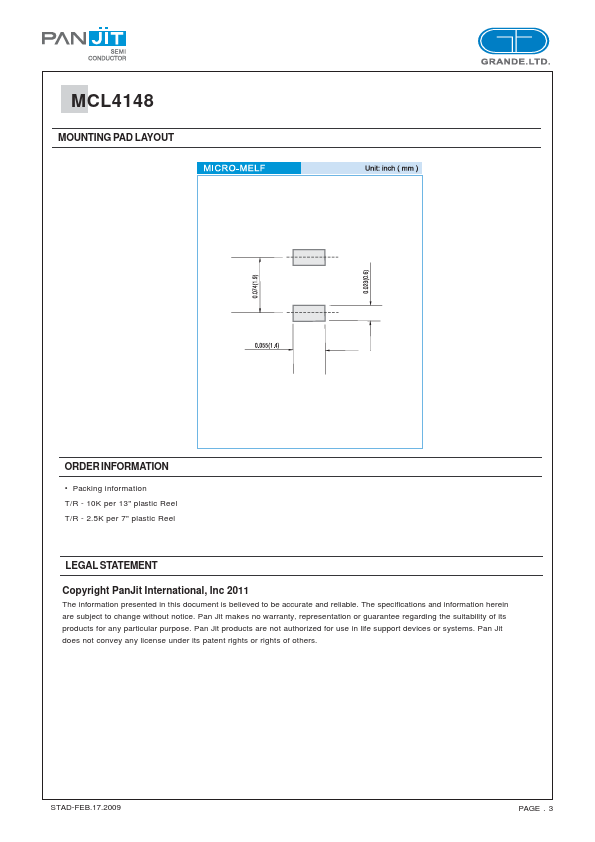

MCL4148 Datasheet Preview — Preview of MCL4148 PDF

Datasheet Specifications

Part number: MCL4148
Manufacturer: PANJIT
File Size: 86.55 KB
Datasheet: MCL4148-PANJIT.pdf
Description: FAST SWITCHING SURFACE MOUNT DIODES

Features

* Fast switching Speed.
* Surface Mount Package Ideally Suited For Automatic Insertion.
* Silicon Epitaxal Planar Construction.
* In compliance with EU RoHS 2002/95/EC directives MICRO-MELF MECHANICAL DATA
* Case: MICRO MELF, Glass
* Terminals: Solde
