MCL4448 FAST SWITCHING SURFACE MOUNT DIODES

PANJIT

Description

MCL4448 FAST SWITCHING SURFACE MOUNT DIODES VOLTAGE 100 Volts POWER 500 mW .

📥 Download Datasheet

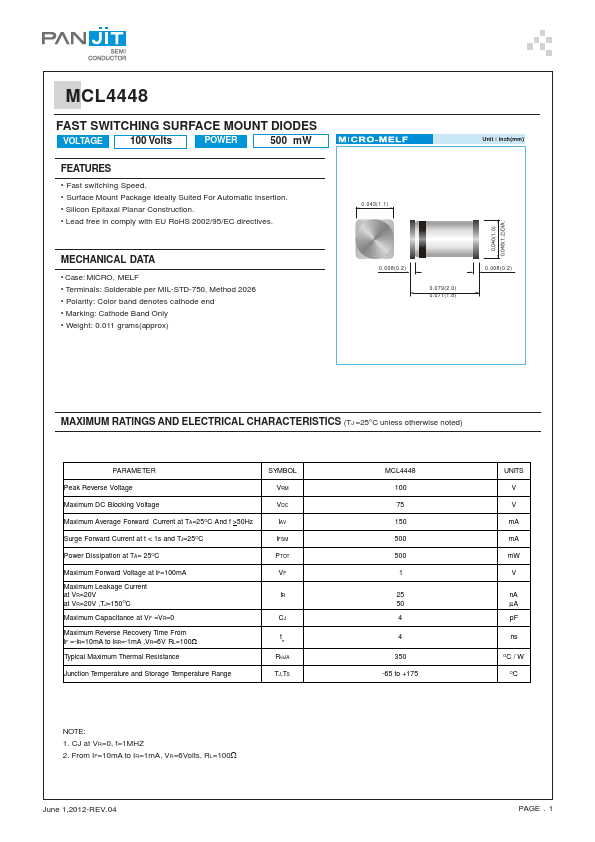

MCL4448 Datasheet Preview — Preview of MCL4448 PDF

Datasheet Specifications

Part number: MCL4448
Manufacturer: PANJIT
File Size: 88.01 KB
Datasheet: MCL4448-PANJIT.pdf
Description: FAST SWITCHING SURFACE MOUNT DIODES

Features

* Fast switching Speed.
* Surface Mount Package Ideally Suited For Automatic Insertion.
* Silicon Epitaxal Planar Construction.
* Lead free in comply with EU RoHS 2002/95/EC directives. MECHANICAL DATA
* Case: MICRO, MELF
* Terminals: Solderable per M

Applications

* shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further
