EPT7000 16 Pin SMD Adapter For Token Ring

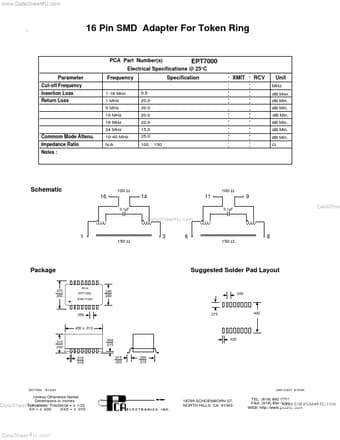

www.DataSheet4U.com 16 Pin SMD Adapter For Token Ring PCA Part Number(s) Parameter Cut-off Frequency Insertion Loss Return Loss 1-16 MHz 1 MHz 5 MHz 10 MHz 16 MHz 24 MHz Commom Mode Attenu. Impedance Ratio Notes : 10-40 MHz N/A 0.5 20.0 20.0 20.0 20.0 15.0 25.0 100 : 150 EPT7000 Specification XMIT RCV Unit MHz dB Max. dB Min. dB Min. dB Min. dB Min. dB Min. dB Min. Ω Electrical Specifications @ 25°C Frequency Schematic 16 100 Ω 100 Ω 14 0.1µF 11 0.1µF 9 DataShee DataSheet4U.com 1 3 6.

EPT7000 Datasheet (162.90 KB)

EPT7000 Datasheet Preview — Preview of EPT7000 PDF

Datasheet Details

Part number:

EPT7000

Manufacturer:

PCA Electronics

File Size:

162.90 KB

Description:

16 pin smd adapter for token ring.
