EPT7002 4/16 MBPS Token Ring 24 Pin Module For Transmit And Receive

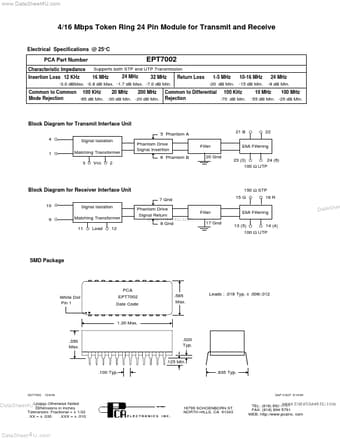

www.DataSheet4U.com 4/16 Mbps Token Ring 24 Pin Module for Transmit and Receive Electrical Specifications @ 25°C PCA Part Number Characteristic Impedance EPT7002 Supports both STP and UTP Transmission Return Loss 1-5 MHz 10-16 MHz -20 dB Min. -15 dB Min. 24 MHz -8 dB Min. 24 MHz Insertion Loss 12 KHz 16 MHz 32 MHz -3.0 dBMax. -0.8 dB Max. -1.7 dB Max. -7.0 dB Min. Common to Common 100 KHz 20 MHz 200 MHz Mode Rejection -65 dB Min. -30 dB Min. -20 dB Min. Common to Differential 100 KHz Rejecti.

EPT7002 Datasheet (161.57 KB)

EPT7002 Datasheet Preview — Preview of EPT7002 PDF

Datasheet Details

Part number:

EPT7002

Manufacturer:

PCA Electronics

File Size:

161.57 KB

Description:

4/16 mbps token ring 24 pin module for transmit and receive.
