EPT7001 Datasheet - PCA Electronics

EPT7001 4/16 MBPS Token Ring 16 Pin Modules For Transmit And Receive

www.DataSheet4U.com 4/16 Mbps Token Ring 16 Pin Modules for Transmit and Receive Electrical Specifications @ 25°C PCA Part Number Characteristic Impedance Insertion Loss 12 KHz -3.0 Max. 150 Ω 16 MHz -0.8 Max. 24 MHz -1.7 Max. 32 MHz -7.0 Min. Return Loss 1-5 MHz 10-16 MHz -20 dB Min. -15 dB Min. 24 MHz -5 dB Min. EPT7001 & EPT7001G Common to Common 100 KHz 20 MHz 200 MHz Mode Rejection -65 dB Min. -30 dB Min. -20 dB Min. Common to Differential 100 KHz Rejection -70 dB Min. 10 MHz 100 MHz -.

EPT7001 Datasheet (163.14 KB)

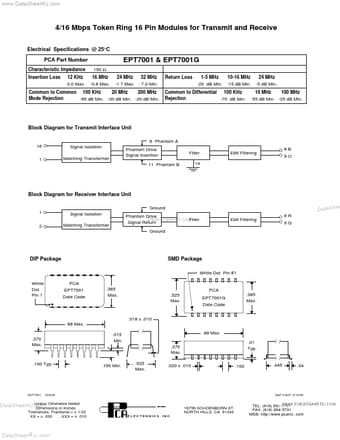

EPT7001 Datasheet Preview — Preview of EPT7001 PDF

Datasheet Details

Part number:

EPT7001

Manufacturer:

PCA Electronics

File Size:

163.14 KB

Description:

4/16 mbps token ring 16 pin modules for transmit and receive.
