EPT7003 Datasheet - PCA Electronics

EPT7003 Common Mode Choke

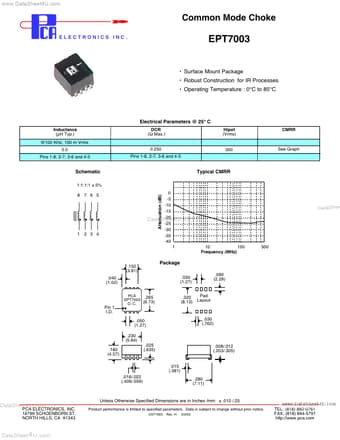

www.DataSheet4U.com Common Mode Choke ELECTRONICS INC. EPT7003 Surface Mount Package Robust Construction for IR Processes Operating Temperature : 0°C to 85°C Electrical Parameters @ 25° C Inductance (µH Typ.) @100 KHz, 100 m Vrms 5.0 Pins 1-8, 2-7, 3-6 and 4-5 0.250 Pins 1-8, 2-7, 3-6 and 4-5 300 See Graph DCR (Ω Max.) Hipot (Vrms) CMRR Schematic 1:1:1:1 ± 5% Attenuation (dB) 8 7 6 5 0 -5 -10 -15 -20 DataSheet4U.com -25 -30 -35 -40 1 Typical CMRR DataShee 1 .

EPT7003 Datasheet (188.37 KB)

EPT7003 Datasheet Preview — Preview of EPT7003 PDF

Datasheet Details

Part number:

EPT7003

Manufacturer:

PCA Electronics

File Size:

188.37 KB

Description:

Common mode choke.
